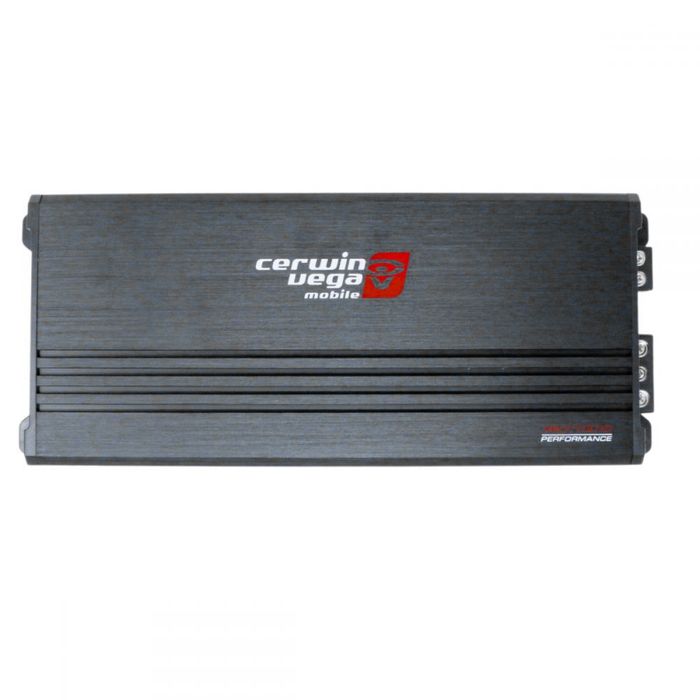

CERWIN VEGA AMPLIFIER XED SERIES MONO 650W RMS @ 4OHM / 1100W RMS @ 2OHM
Your Price:
$489.95 inc GST
SKU:
XED11001D
Stock Level
In Stock
Description
XED11001D - 1 Channel XED Series Class-D Amplifier
Key Features:
• 1-channel Monoblock Class-D car audio amplifier
• Designed specifically for high-performance subwoofer systems
• High-efficiency amplifier technology for powerful output
• Lightweight aluminum chassis for superior heat dissipation
• Clean, distortion-free bass reproduction
• Ideal for aftermarket subwoofer upgrades
Specifications:
POWER RATING
RMS POWER PER CHANNEL 4Ω 650W X 1
RMS POWER PER CHANNEL 2Ω 1100W X 1
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-16.0V (DC)
- Idle Current: (0.7A)
DISTORTION
- THD 4 (100Hz @4Ω): <0.1%
- S/N Ratio (A weighted @1W): -85dBA
- S/N Ratio (A weighted @FP): -101.1dBA
INPUT SENSITIVITY
- Low Input Level: 250mV-6V
- High Input Level: 1.1V~>20.0V
INPUT IMPEDANCE
- Low Input Level: 20KΩ
- High Input Level: 100Ω
OUTPUT STAGE
- Output Impedance: 2Ω
- Damping Factor (50Hz @ 4Ω): >70
- Bandwidth (-3dB): 10Hz-250Hz
CROSSOVER (-12dB/Oct)
- Variable High-Pass:
- Variable Low-Pass: 35Hz-250Hz
- Variable Sub-Sonic: 10Hz-50Hz
FUSE RATINGS
- ATC: 35A x 3 (Inside)
DIMENSIONS
- L x W x H: 11”x 4.7”x 1.8” (280mm x 120mm x 46.5mm)
FEATURES
- Bass Boost: 0dB-12dB
- LED Power/Protect Light Indicator
- Bass Control Included
- MFR #: XED11001D
