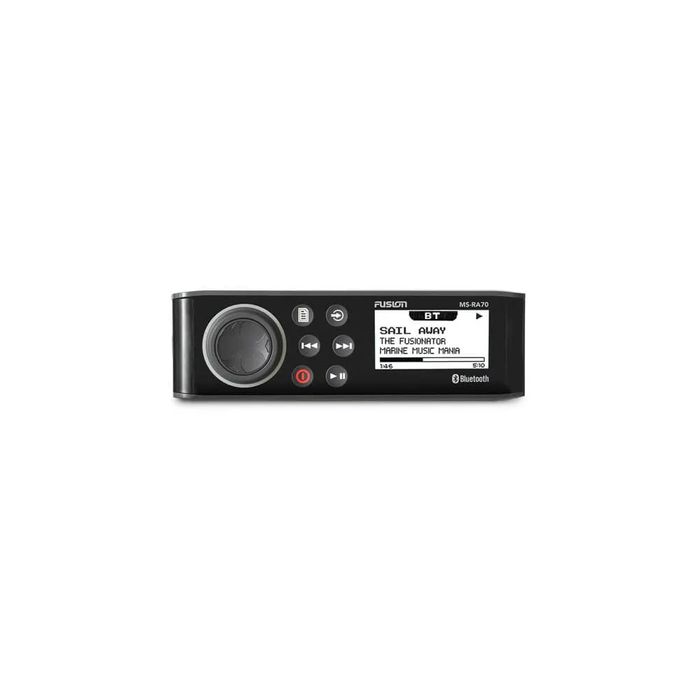

FUSION MARINE STEREO MS-RA70
Your Price:
$529.00 inc GST
SKU:
010-01516-01
Stock Level
In Stock
Description
Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion®.
Fusion Marine Stereo Ms-RA70 with BT/USB/iPhone/Android/AM/FM and Fusion Link App Control
- Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space
- Optically bonded monochrome LCD improves screen visibility
- Built-in Class-AB amplifier delivers efficiency with reduced distortion
- Multi-Zone™ Technology gives you control of two separate audio zones
- Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch
| General | |
|---|---|
| Physical dimensions (HxWxD) | 60 x 188 x 123.5 mm |
| Weight | 556 g |
| Water rating | IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 0° to 50° C |
| Current (max) | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | 10 metres |
| ANT wireless range | 3 metres |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +1.9 dBm nominal ANT 2.4 GHz @ +1.9 dBm nominal |
| Compass-safe distance | 150 mm |
| Stereo features | |
| Display | 128 x 64 optically bonded monochrome LCD |
| Built-in amplifier | Class-AB |
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | MS-RA70: Yes (smartphone and Garmin watch) MS-RA70N: Yes (MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ ready | MS-RA70 and MS-RA70N only; (requires DAB100A antenna module) |
| NRX remote compatibility | MS-RA70N only |
| Multi-language interface | Dutch / English / French / German / Italian / Spanish |
| Fits DIN-sized cutout | Yes |
| Software updates | USB |
| Warranty | 1 year |
| Sources | |
| Sources | AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only) |
| Connectivity | |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | MS-RA70N : 1 port |
| USB 2.0 | One USB 2.0 port |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 2 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
