CERWIN VEGA AMPLIFIER CVPRO MONO 1900W RMS @ 4OHM / 3300W RMS @ 2OHM / 5000W RMS @ 1OHM
Description

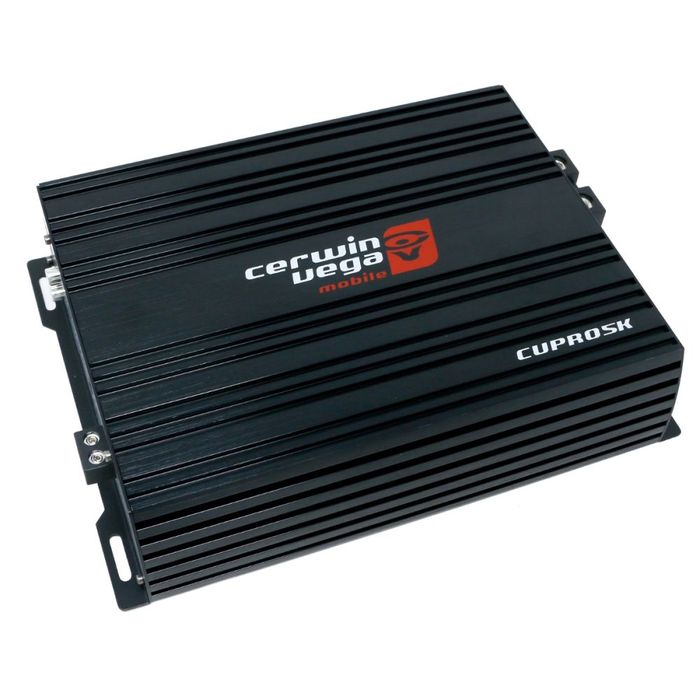

CVPRO5K CVPRO-Series 1-Channel Monoblock 5000W Class D Amplifier
Description:
The CV PRO series amplifiers quench the thirst of those power-hungry speakers & subwoofers that call for enormous power to make the ground pound. Designed and engineered to generate maximum power output, the CV PRO series amplifiers delivers 1000W to 10,000W of MAX power that will produce bass mayhem and make your speakers & subwoofers flex and shiver like never before. For the ultimate SPL experience, you cannot go wrong with CV PRO series amplifiers!
Key Features:
• 1-channel Class-D Monoblock amplifier for extreme subwoofer performance
• Designed for high-power car audio and SPL competition systems
• High-current circuitry for maximum bass output and control
• Advanced thermal management for reliable operation
• High-efficiency Class-D technology for powerful, clean bass
Specifications:
POWER RATING
FREQUENCY RESPONSE (HZ): 15HZ-250HZ
RMS POWER PER CHANNEL 4Ω 1900W X 1
RMS POWER PER CHANNEL 2Ω 3300W X 1
RMS POWER PER CHANNEL 1Ω 5000W X 1
POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-17.0V
- Idle Current: 2.6A
DISTORTION
- THD 4 (1KHz @4Ω): 0.1%
- S/N Ratio (A weighted @1W): -90dBA
- S/N Ratio (A weighted @FP): -105dBA
INPUT SENSITIVITY
- Low Input Level: 0.2V-5.0V
- High Input Level: 0.2V-5.0V
INPUT IMPEDANCE
- Low Input Level: 20KΩ
- High Input Level:
OUTPUT STAGE
- Output Impedance: 0.018Ω
- Damping Factor: >150
- Bandwidth (-3dB): 15Hz-20KHz
CROSSOVER (-12dB/Oct)
- Variable High-Pass: 50Hz-20KHz
- Variable Low-Pass: 15Hz-1KHz
- Variable Sub-Sonic: 15Hz-1KHz
FUSE RATINGS (RECOMMENDED 1/2 THE FULL CURRENT DRAW FOR FUSING)
- ATC: 200A
DIMENSIONS
- L x W x H: 10.4”x 8.8”x 2.6” (265mm x 225mm x 66.5mm)
FEATURES
- Caution High Current Draw Amplifier
- Recommended 0/1 Gauge OFC Power/Ground Wire
- LED Power/Protect Status Light
- LED Clipping Indicator Light
- Selectable Bass Frequency: 35Hz-70Hz
- Variable Bass Boost: 0dB-12 dB
- Wired Remote Bass Level Control Included
- 1-year Manufacturer's Warranty
CVP Pro Amp User Manual:
