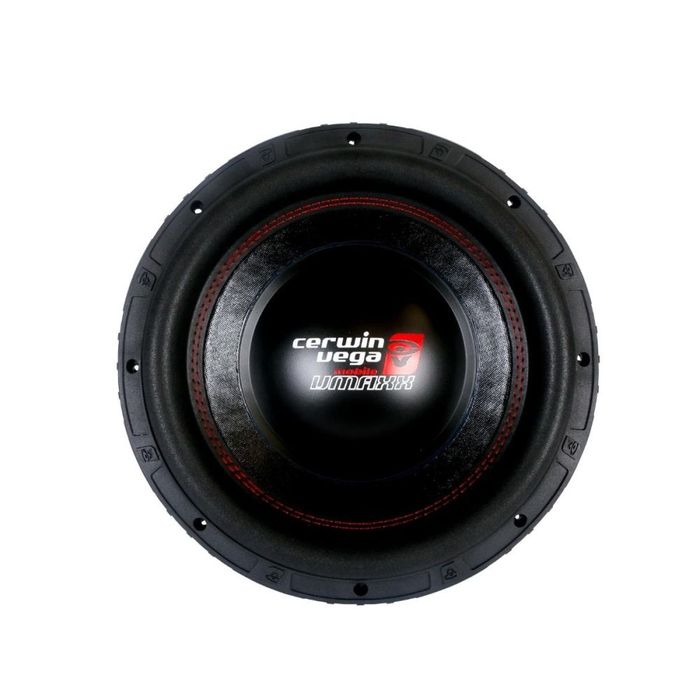

CERWIN VEGA 10" VMAXX SERIES 4 OHM OR 1 OHM LOAD DUAL 2 OHM SUBWOOFER 800W RMS

Your Price:
$349.95 inc GST
SKU:
VMAX10D2
Stock Level
In Stock

Description

VMAX10D2 - 10” Dual 2-ohm (1O/4O) High-Performance Subwoofer 1600W MAX / 800W RMS -
Description:
Heavy Industrial Strength Aluminum Cast Frame.
Black Design Patterned Treated Semi-Pressed Pulped Cone.
Elevated Motor Structure Cooling Design.
Oversized Spider.
Black Coated Voice Coil for Higher Thermal Capability.
Oversized Polished Black Chrome Finished Terminals.
Polished Bumped Backplate.
Klippel DA Optimized Motor and Suspension Symmetry.

Features:
10” Dual 2-ohm High-Performance Subwoofer
800W RMS / 1600W MAX
Mounting Diameter: 9.13”
Mounting Depth: 6.18”
Voice Coil: 2.5”
Shorting Ring for lower Distortion

Subwoofer Size 10”
RMS Power Rating 800W
Max Power Rating 1600W
SPL (db) 83.3
Re (O)[series] 1O/4O
Qms 6.73
Qes 0.61
Qts 0.56
Fs-Free Air Resonance (Hz) 32.6
Vas (Liter) 24.6
Sd (cm²) 0.036
BL (T*M) 14.7
Xmax - Inch(mm) 15
Cms (mm/N) 0.13
Mms (g) 178.5
Pwr (W) NOM/MAX 800/1600
Total Diameter 11.06” (281mm)
Mounting Diameter (inch/mm) 9.47” (240.5mm)
Screw Hole Diameter 0.26” (6.5mm)
Mounting Depth 5.39” (137mm)
Magnet Diameter (E) 6.89” (175mm)

Amplifier options:
For 1 sub can use CVPRO3K for 4 Ohm Load
For 2 subs can use CVPRO3K for 1 Ohm Load
