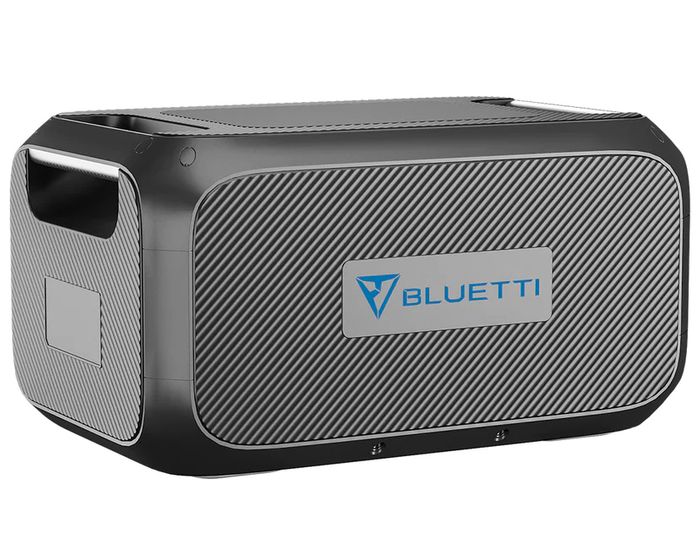

BLUETTI B230 EXPANSION BATTERY & USB/12VDC POWER STATION | 2,048WH
Description
Suitable For: AC200MAX / EP500Pro
Never Run out of Power
BLUETTI B230 suits your ordinary electricity needs at 2,048Wh capacity and supports solar, AC (Sold separately), car, and lead-acid battery charging to capture power whenever and wherever. *The car and lead-acid battery charging need a D050S.
Versatile Power Source
The 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports are to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.
Give Your Devices More Runtime
B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.
Home Backup and Trip Power Bank
The AC200MAX + B230 unit is portable and safe to use. Just put them in your home or trunk, they will serve as your home and camping trip backup or power supply with a great feature set.
BATTERY INFO
Capacity: 2,048Wh (51.2V,40Ah)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Lifecycle: 3,500+ Cycles to 80% Original Capacity
Shelf-Life: Recharge to 80% Every 3-6 Months
Management System: MPPT Controller, BMS, etc.
OUTPORTS
USB-C Port: 1 x 100W Max.
USB-A Port: 1 x 18W USB-A
12V DC Outlets: 1 x 12V/10A (Car Outlet)
INPUT
AC Input: 500W Max.
Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)
Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
Max Input: 500W
RECHARGE TIME
AC Adapter (500W): ˜5.5~6 Hours
Solar Panel(500W): ˜4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W): ˜10 or 20 Hours
GENERAL
Compatibility: AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)
Pass-through Charging: Yes
Weight: 48lbs (21.8kg)
Dimensions (LxWxD): 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)
Operating Temperature: 32°F-104°F (0-40°C)
Storage Temperature: -4-104?(-20-40?)
Certification: UL, CEC, DOE, FCC, CA Prop 65
