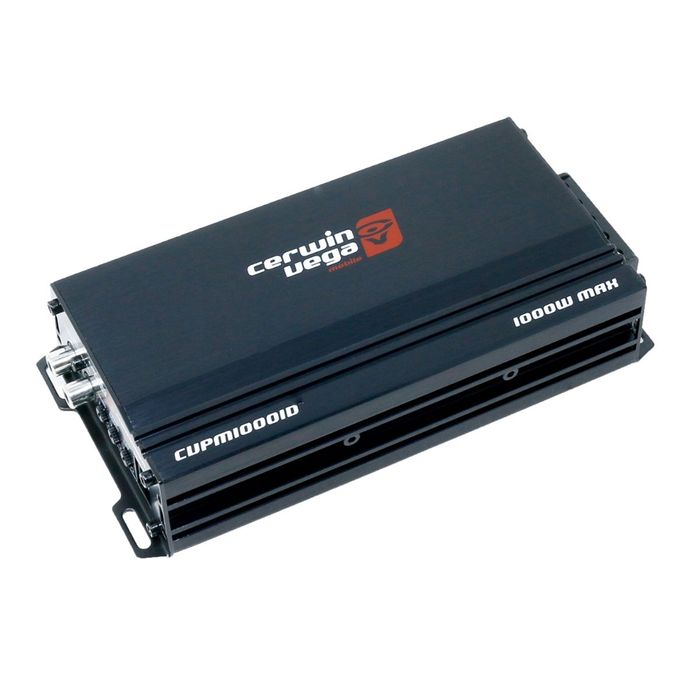

CERWIN VEGA AMPLIFIER CVP SERIES MONO 350W RMS @ 4OHM / 500W RMS @ 2OHM

Your Price:
$349.95 inc GST
SKU:
CVPM1000.1D
Stock Level
In Stock

Description

CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier

Power Rating (RMS)

RMS POWER PER CHANNEL 4Ω 310W X 1
RMS POWER PER CHANNEL 2Ω 500W X 1
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 35HZ-500HZ

Power Supply

  • Power Supply: Full WPM
  • Power Supply Threshold: 10.0V-17.0V (DC)
  • Idle Current: (0.7A)

Distortion

  • THD 4 (1KHZ @4Ω): 0.01%
  • S/N RATIO (A WEIGHTED @1W): -85dBA
  • S/N RATIO (A WEIGHTED @FP): -101.1dBA

Input Sensitivity

  • Hi/Low Level Input: 0.15mV-6.0V

Input Impedance

  • Low Level Input: 20KΩ

Output Stage

  • Output Impedance: 0.0297Ω
  • Damping Factor (50Hz@4Ω): >70
  • Bandwidth (-3db): 10Hz-45KHz

Crossover (1-12dB/Oct)

  • Variable High-Pass:
  • Variable low-Pass: 35Hz-500Hz

Fuse Rating

  • 2x30A

Dimensions

  • Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
