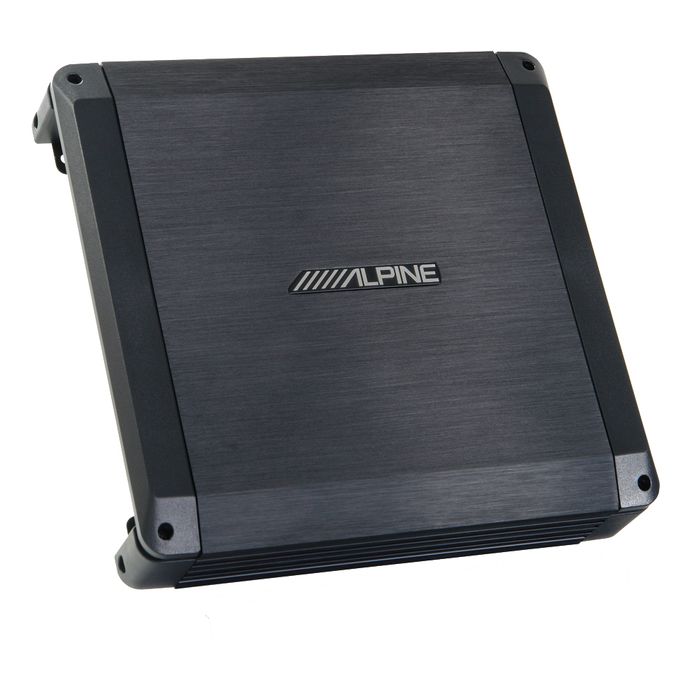

ALPINE BBX SERIES AMP 2-CH CLASS A/B 50W RMS x 2 @ 4OHM / 70W RMS X 2 @ 2OHM

Regular Price:
$199.95 inc GST
SKU:
BBX-T600
Stock Level
In Stock

Description

FEATURES

Install

  • Terminal Layout: Two-Sided

  • Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

  • Amplifier Type: Class-A/B

  • Channel Design: 2/1 Channel

  • Thermal Control: Thermal Management Control

  • Power Supply: DC-DC PWM Power Supply

  • Power Supply Design: MOSFET Power

  • Current Protection: Over-Current, Over-Voltage and Thermal Protection

  • Crossover: Variable Low-Pass / High-Pass

  • Green/red Status LED

  • 1 pair RCA pre-inputs

  • 1 pair RCA pre-outputs

SPECIFICATIONS

Max Power Output Ratings

  • Total Max Power: 300W

RMS Power Ratings

  • Per Channel into 4ohms (≤1%THD+N): 2 x 50W

  • Per Channel into 2ohms (≤1%THD+N): 2 x 70W

  • Bridged into 4ohms (≤1%THD+N): 1 x 130W

Sound Tuning

  • Crossover Frequency (Variable, OFF/LPF/HPF Selectable)

  • 1/2 Ch: LP: 50Hz – 250Hz   HP: 80Hz  – 1.2kHz

  • EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB

Dimensions

  • Footprint: 250 mm x 52 mm x 240 mm

General

  • Power Requirements: 14.4 V DC (11 V to 16 V)

  • Input Sensitivity: 0.2 - 8.0 V

  • Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)

  • Speaker Impedance: 4 or 2 Ω

  • Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB

  • Weight: 1.9 Kg
