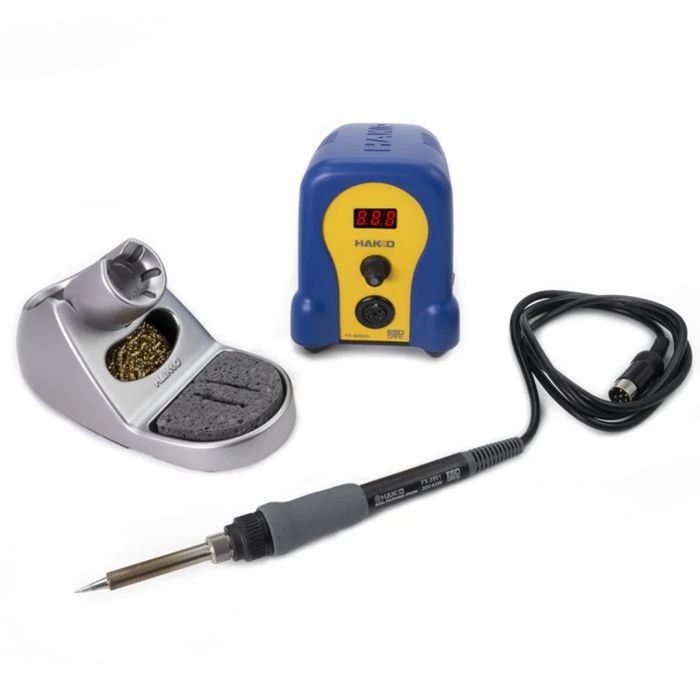

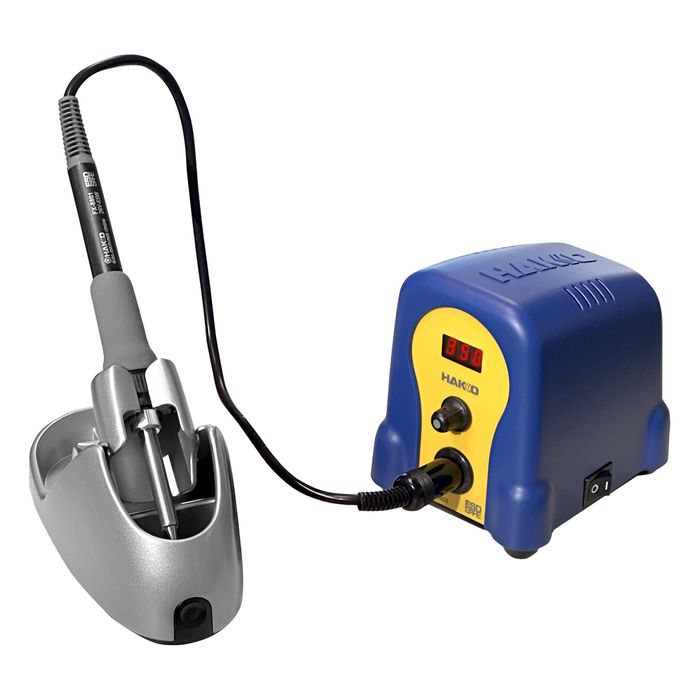

HAKKO FX-888DX ESD SAFE SOLDERING STATION
Description
A newly adopted rotary encoder offers ideal operability
Changing a set temperature
Temperature can be changed only by turning the knob to right or left.
Adjust mode* (Tip temperature correction)
Transit to adjust mode by pressing and holding the knob >>Tip temperature is corrected by entering the actual measured tip temperature.
What's in the box?
• Station
• Handpiece
• Iron Holder with cleaning sponge and wire
• Instruction manual
Specifications
Power consumption: 100 W
Temperature range: 50 to 480℃
Temperature stability: ±1℃ (At idle temperature) (When set to 200 to 480℃)
Station
Output voltage: AC 26 V
Dimensions: 100 (W) × 120 (H) × 125 (D) mm
Weight: 1.2 kg
Soldering Iron
Power consumption: 65 W (26 V)
Tip to ground resistance: ＜2 Ω
Tip to ground potential: ＜2 mV
Heating element: Ceramic heater
Standard tip: Shape-B (T18-B)
Cord length: 1.2 m
Total length: 217 mm (with T18-B tip)
Weight: 46 g (with T18-B tip)
