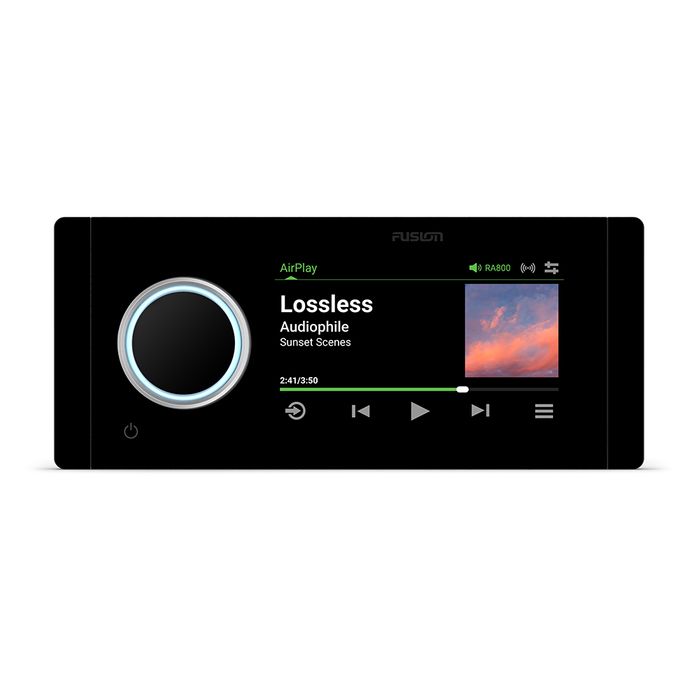

FUSION MARINE STEREO MS-RA800

Your Price:
$1,799.01 inc GST
SKU:
010-02937-01
Stock Level
SPECIAL ORDER ONLY

Description

OUR MOST ADVANCED MARINE STEREO EVER
It’s the most powerful and technologically advanced Fusion® marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi® connectivity supports seamless AirPlay® audio streaming on your boat.

HIGH-RESOLUTION AUDIO
Our first marine stereo to support high-resolution lossless audio (up to 24 bits at 96 kHz), RA800 offers unparalleled sound quality — supported by Wi-Fi technology for seamless audio streaming.

UPGRADED INTERNAL AMP
The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms — producing more than 50% more power output1 than its predecessor.

HIGHER-RESOLUTION DISPLAY
The stereo’s 4.3″ LCD touchscreen display offers notable improvements1 in image resolution, colour saturation, viewing angles and readability in bright daylight.

STEREO NETWORKING
Connect your RA800 stereo with other Apollo Series stereos to create a network on board your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options and Home Zone control.

Multiple source options
Take advantage of a wide variety of source options available, including AirPlay streaming from Apple®, BLUETOOTH® connectivity, HDMI ARC, USB connections, AM/FM radio and AUX inputs.

MFD NETWORKING
Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000® networking for integrated audio control at the helm. Or use the Fusion® Audio app to wirelessly control your music from a compatible Garmin smartwatch or other smart device.


General
Physical dimensions (Height) 82 mm (3.23")
Physical dimensions (Width) 192 mm (7.56")
Physical dimensions (Depth) 119.4 mm (4.7")
Weight 620 g (1.37 lbs)
Control Surface Dust/Water Rating (when properly installed) IPX6 and IPX7
Rear Dust/Water Rating (when properly installed) IPX3
Operating temperature range -20 to 70° C
Current draw (max) 25 A at 14.4 V; 15A at 28.8 V
Warranty 3 years
Networking
NMEA 2000® LEN 2 (65 mA)
Bluetooth® wireless range Up to 10 metres (30 ft)
ANT® wireless range Up to 10 ft (3 metres)
Wireless frequencies/protocols WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2
Bluetooth®: 2.4 GHz @ +10 dBm nominal
ANT®: 2.4GHz 0dBm nominal
Audio
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) 40 W x 4
Electrical features
POWER INPUT 10.8 to 32 Vdc
Compass safe distance 150 mm (5.9)
Stereo features
Display Size 109 mm (4.3")
Display type Capacitive touchscreen colour LCD
Display resolution 800 x 480
Optically bonded display yes
Built-in amplifier Class D (4 Ω)
Built-in Wi-Fi® Yes
Built-in Digital Signal Processing (DSP) Yes (with custom DSP profile setup using Fusion-Link™ app)
Stereo networking Yes (wired or wireless)
Control Yes (MFD, smart device and Garmin watch)
Multi-Zone™️ technology 4 zones
Bluetooth® wireless technology Yes
ANT® wireless technology Yes
Multi-language interface Bulgarian, Simplified chinese, Traditional chinese, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish
Software updates Over-the-air updates via Fusion-Link™ app (when connected to wireless network router) / USB
Sources
Supported sources AM, FM, BLUETOOTH®, Apple AirPlay® 2,HDMI ARC,USB audio,iPhone,iPod,AUX x2
Supported audio formats (USB) MP3, AAC, M4A, FLAC, WAV
Connections
Auxiliary inputs (RCA) 2
HDMI ARC Ports 1
Ethernet ports 1
NMEA 2000® ports 1
USB 2.0 ports 1 (USB-C)
Antenna ports 2 (1x Motorola (female)
Speaker connections 4 (2 zone amplified)
RCA pre-out (left, right and subwoofer - requires external amplification) 4 zones
Line out (requires external amplification) 4 (L + R per zone)
Subwoofer out (requires external amplification) 4 (1 mono output per zone)
