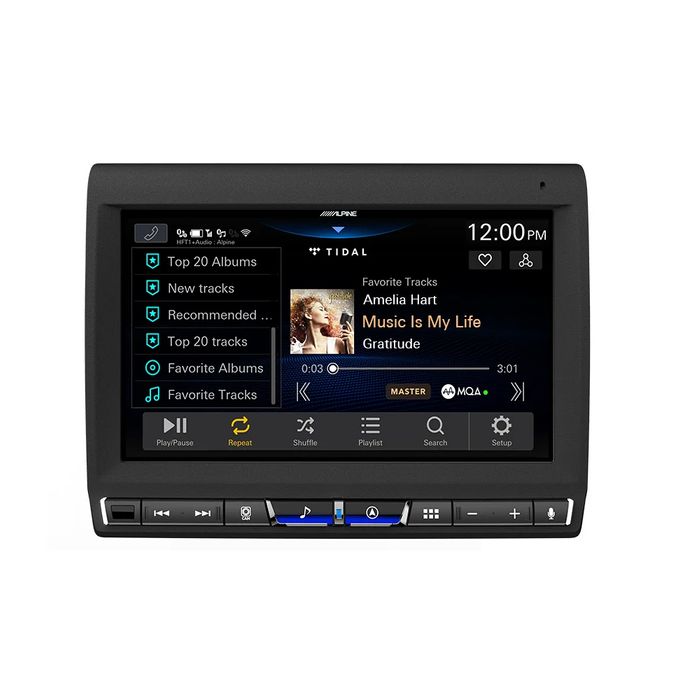

ALPINE I905I 9 INCH INTEGRATED HEAD UNIT WITH WIRELESS APPLE CARPLAY ANDRIOD AUTO

Description

For all 70 Series enthusiasts who demand the ultimate in-car experience, Alpine’s all-new i905i-LC70-24 has been engineered with cutting-edge design to elevate the in-cabin aesthetic and meet the integration requirements of 2024 onwards models.

The high-definition WXGA 9” display acts as a stunning centrepiece to the interior, integrating seamlessly whilst also showcasing design cues in-line with the 70 Series rugged history. Discover an industry-leading innovation masterpiece, delivering unmatched quality and value for the ultimate 21st century off-road lifestyle.

Equipped with wireless Apple CarPlay and Android Auto (USB), an endless array of entertainment and smartphone apps are available to use in your dashboard. Get directions with maps and navigation apps, send and receive messages, make calls and listen to music all without a cable in sight.

Experience wireless Hi-Res audio like you’ve never heard it before. For those with a large existing library of Hi-Res audio content that is also supported up to 96kHz 24bit.

With a world-first innovation, the i905i-LC70-24 is equipped with a powerful built-in Class-D amplifier to deliver the richness and dynamics of your music for the most superior sound performance.

Moreover, with Alpine’s extensive sound tuning built-in you can apply simple one touch audio adjustments to make your cabin space sound brilliant, or for pro-level users and enthusiasts a host of advanced tuning functions are available.

The i905i-LC70-24 is the new benchmark for all 70 Series enthusiasts—elevating the interior aesthetic in every way possible, whilst delivering an incredible connectivity and multimedia experience with impeccable audio performance.

Steering Wheel Control Retention
Retain essential factory features such as steering wheel controls with the included interface. Retain the ability to change songs, adjust volume & control calls with ease. Additionally, retain the factory reverse camera if fitted.

Limitless Accessory Control Potential
Control accessories such as winches, spotlights, light bars and more with ease via the i905i. Create your own Alpine command centre with the KAC-001. *Sold Seperately.

High-Definition Laminated Display
Alpine’s incredible WXGA display has to be seen to be believed, colours are intensely vibrant and realistic, video motion is ultra-smooth and the image detail is razor sharp. Moreover, with its laminated display technology brightness and contrast is truly next level, so no matter the lighting conditions or viewing angle the display reveals incredible clarity and true-to-life colour. Alpine’s new WXGA high definition display is simply stunningly beautiful—bringing a cinematic experience right into your dashboard.

Specifications

General
Power Requirement – 14.4V DC (11-16V allowable)
Operating Temperature – -20°C to +60°C
Power Output – 50W x 4
Maximum Current Consumption – 15A
Audio Output Level

Preout (Front, Rear): 4V/10k ohms (max.)
Preout (Subwoofer): 4V/10k ohms (max.)
Weight

2.3kg
Screen
Screen Size: 9 inch Laminated WXGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL
FM Tuner
Tuning Range – 87.5 -105MHz
Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms)
50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms)
Alternate Channel Selectivity – 80dB
Signal-to-Noise Ratio – 65dB
Stereo Seperation – 35dB
AM Tuner
Tuning Range – 531-1701 kHz
Usable Sensitivity – 25.1μV/28 dBf
DAB Tuner
Tuning Range – 174 – 240 MHz
Usable Sensitivity – -100dBm
Signal-to-Noise Ratio – 90dB
USB (1)
USB Requirements: USB 2.0
Max. Power Consumption: 2,400 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32, exFAT
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
FLAC Decoding
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.005%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 95 dB
Channel Separation (at 1kHz): 90 dB
USB (2)
USB Class: Charge Only
Max. Power Consumption: 1,500 mA (CDP Support)
BLUETOOTH®
BLUETOOTH® Version: Bluetooth V4.2 (2,402 – 2,480 MHz)
Output Power: +4 dBm/2.51 mW Ave. (Power Class 2)
HFP: HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)
HDMI Section
Input Format: 720p/480p/VGA
Output Format: 720p/480p
GPS
Reception Frequency 1575.42 +/- 1.023 MHz
Reception Sensitivity (Search) -136dB max.
Wi-Fi
Frequency Ranges

IEEE 802.11 b/g/n (2.4 GHz)
Channels

1 -13 ch (2.4 GHz)
Security Protocols

WPA3/WPA2-PSK (TKIP, AES)
Dimensions
Din Size: 1DIN chassis and 9” Capacitive Touch Screen
Chassis Size (W x H x D) mm: 178 x 50 x 149.6mm
Display Size (W x H x D) mm: 268.9 x 178 x 54.7
