ALPINE HEAD UNIT 9" MIRROR LINK MULTIMEDIA RECEIVER WITH ALPINE OS (RAM4/64GB)

Description

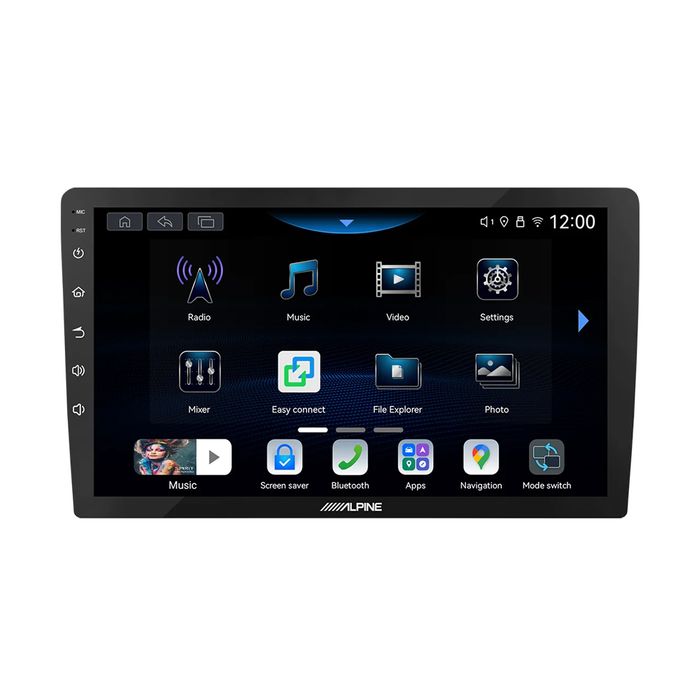

Introducing the Alpine iNE‑AW409S, a custom‑fit multimedia head unit offering a sharp 9-inch laminated WXGA HD display, running on an intuitive Alpine OS for fluid, responsive performance.

The iNE‑AW409S delivers a versatile in‑car media experience. With Bluetooth 5.0 and dual USB inputs, you can stream music and make hands‑free calls effortlessly, also supporting a wide range of audio formats (FLAC, MP3, WAV, APE, etc.) and video playback (MPEG, MKV and more) for maximum compatibility.

The cinematic 9-inch WXGA display takes picture quality to the next level. Images remain razor-sharp and vividly colourful at any angle, bringing images and video to life in stunning high definition.

With a suite of pre-loaded applications, you can enjoy wireless navigation with Google Maps, make calls, and listen to your music all without a single cable.

Enjoy intuitive and effective user‑friendly sound tuning with EQ presets and fader/balance control, letting you tailor the audio staging to your specific vehicle and setup.

Experience luxury in-car entertainment with breathtaking high definition and seamless access to your driving essentials, all at the touch of a button with the iNE-AW409S-9.

9-Inch High Definition Laminated Display
Alpine’s incredible WXGA display has to be seen to be believed, colours are intensely vibrant and realistic, video motion is ultra-smooth and the image detail is razor sharp. Moreover, with its laminated display technology brightness and contrast is truly next level, so no matter the lighting conditions or viewing angle the display reveals incredible clarity and true-to-life colour. Alpine’s WXGA high definition display is simply stunning—bringing a cinematic experience right into your dashboard.

Onboard Applications
The iNE-AW409S features many pre-loaded applications for access to navigation, music, video, & stationary entertainment. Enjoy easy access to entertainment and communication without relying on a mobile phone. Users can also customise the experience or add new apps via USB, creating a seamless, connected in-car infotainment system.

Steering Wheel Control Learning
The Alpine iNE‑AW409S supports steering wheel control learning and programming, allowing buttons to be customised for easy access to audio, navigation, and communication features. This integration ensures safe, hands-on operation while driving. Functions such as volume, track selection, phone answering, and voice commands can be assigned to the steering wheel buttons. The system is compatible with resistive type systems, vehicles using CAN-BUS and other protocols will require a 3rd party adapter.

General:
4x 50 Watts Built-in Amplifier
CPU: Cortex A35 (1.50 Ghz)
Storage: 64GB
9-inch High-Definition WXGA Laminated LCD Display (1280 x 720p)
Illuminated Keys (White)
2 PreOuts (Front (Left/Right)/Subwoofer (Mono))
1 RCA (L/R) AUX Input
1 3.5mm External Microphone Input
2 USB Ports (2x USB data/charging ports)
Steering Wheel Control Ready (Learning Type)
External CANBUS Vehicle Interface Support
1 x RCA input for Rear Camera Connection (CVBS / AHD)
Alpine to ISO Harness Included
Engine Start-Stop unaffected

Radio Tuner:
Preset Stations (FM: 3×6 / AM: 2×6)
Memory: Auto Memory
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
RDS Fallback (where available)

BLUETOOTH®:
Built-in BLUETOOTH® 5.0 BLE (Advanced)
HFP (Hands-Free Profile) Compatible
Phone Book Synchronisation
Call log Display: Outgoing Calls / Incoming Calls / Missed Calls
Speech Volume Level Adjustment: (Outgoing and Incoming)
Built-in Microphone

Connectivity:
Wireless Smartphone Connectivity
Includes GPS / Beidou / GPS-A Navigation Antenna
Supports Wi-Fi Connection

USB Media Connection:
2x USB cable included
USB port 1: data/charging port / USB port 2: data/charging port
USB for music : MPEG / WMA / WAV / OGG / FLAC / AAC / AMR / MID
USB for video : MPEG1/2 / MPEG4 / H.254 / AVC / MVC / H.265 / HEVC / VP8 / H.263 / VC-1 / MKV

Sound Tuning:
5 Equalizer PreSets
3 Band Custom EQ Tuning (Bass/Alto/Treble)
Fader/Balance

Specifications:

General
Power Requirement – 14.4V DC (11-16V allowable)
Operating Temperature – -20°C to +60°C
Power Output – 50W x 4
Maximum Current Consumption – 15A

Audio Pre-Outs
Preout (Front): Left/Right
Preout (Subwoofer): Mono

Screen
Screen Size: 9-inch
LCD Type: Laminated WXGA Full HD Display (1280x720p)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL

FM Tuner
Tuning Range – 87.5 -105MHz

AM Tuner
Tuning Range – 531-1701 kHz

BLUETOOTH®
BLUETOOTH® Version 5.0 BLE

Wi-Fi
Frequency Ranges
IEEE 802.11 b/g/n (2.4 GHz)
IEEE 802.11 a/n/ac (5 GHz)
Security Protocols
WPA3/WPA2-PSK (TKIP, AES)

Dimensions:
DIN Size: Trapezoid
