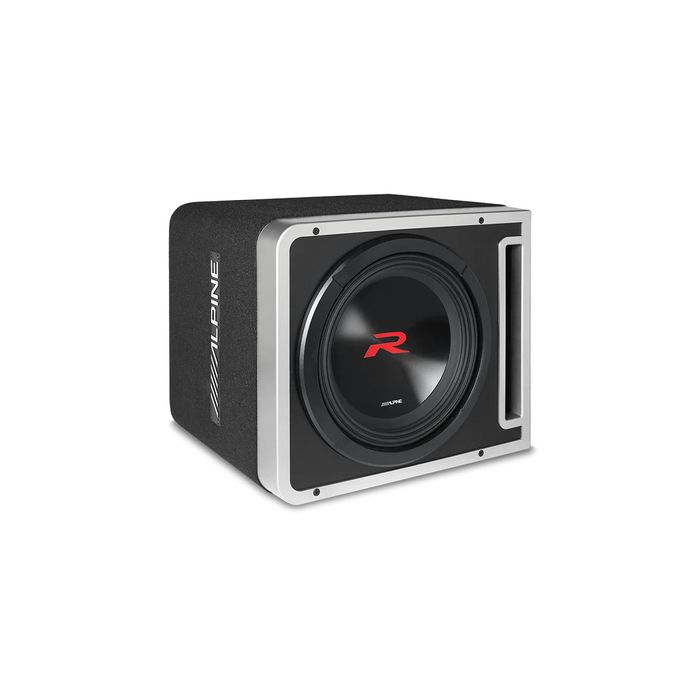

ALPINE (R SERIES) 10" HALO SUBWOOFER WITH PROLINK 2 OHM 2250W MAX, 750W RMS

Name: ALPINE (R SERIES) 10" HALO SUBWOOFER WITH PROLINK 2 OHM 2250W MAX, 750W RMS
Brand: ALPINE
SKU: R2-SB12V

POA

SKU:

R2-SB12V

Stock Level

SPECIAL ORDER ONLY

Description

Specifications

Peak Power Handling: 2250W
RMS Power Handling: 750W
High-Excursion Overhung Voice Coil Configuration
65.5mm Voice Coil with High-Temp 4-Layer DVC Winding on Aluminium Former
Stacked High-Grade Strontium Ferrite Magnets
Cast Aluminium Frame
Progressive Spider with Reinforced Layer Tinsel Leads
Airflow Management & Heat Transfer System
Optimised Dual Flare Pole Vent
Concealed Mount Gasket
Reinforced Parabolic Cone Structure (Pulp/Kevlar & PP/Mica/Talc Dust Cap)
High-Amplitude Multi-Roll (HAMR) Surround
Dimensions: 17” W x 14.625” H x 15” D
Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
12 Gauge OFC Speaker Box Wire
Binding Post Terminal Cup
Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
Nominal Impedance: 4Ω+4Ω Dual Voice Coil
2Ω Impedance Loading: (4Ω+4Ω Parallel Circuit)
Frequency Response: 24Hz-200Hz
Vented Enclosure Tuning Frequency: 35Hz
Sensitivity 84dB
