CERWIN VEGA AMPLIFIER XED SERIES 4 CH 80W RMS X 4 @ 4OHM / 120W RMS X 4 @ 2OHM
Your Price:
$419.95 inc GST
SKU:
XED6004D
Stock Level
In Stock
Description

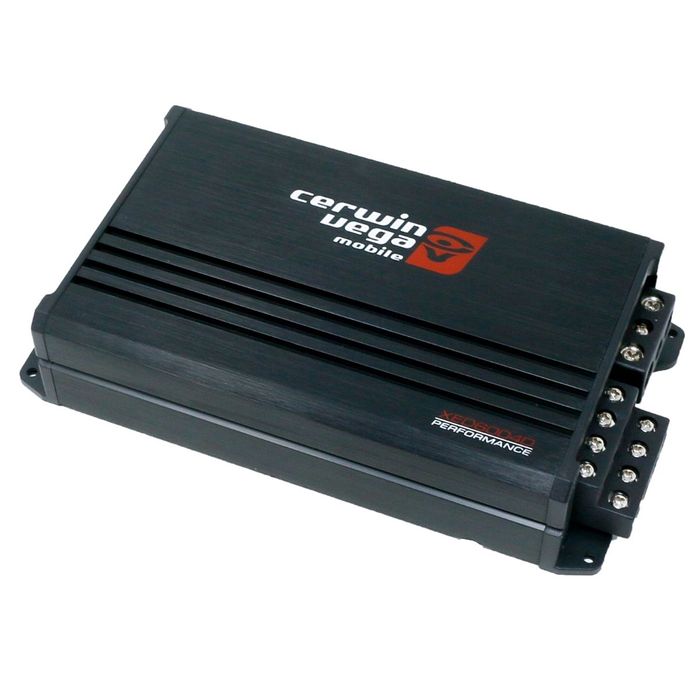

XED6004D - 4 Channel XED Series Amplifier / 600W MAX
Key Features:
• 4-channel full range Class-D car audio amplifier
• High-efficiency Class-D technology for powerful output
• Lightweight aluminum chassis for superior heat dissipation
• Clean, distortion-free sound performance
• Flexible system configuration for speakers or bridged setups
• Ideal for aftermarket car audio upgrades
Specifications:
Power Rating (RMS)
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 80W X 4
RMS POWER PER CHANNEL 2Ω 120W X 4
Power Supply
- Power Supply: Full WPM
- Power Supply Threshold: 10.0V-16.0V (DC)
- Idle Current: (0.7A)
Distortion
- THD 4 (1KHZ @4Ω): 0.1%
- S/N RATIO (A WEIGHTED @1W): -85dBA
- S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
- Low Level Input: 250mV-10.0V
- High Level Input: 1.3V~>20.0V
Input Impedance
- Low Level Input: 10KΩ
- High Level Input: 100KΩ
Output Stage
- Output Impedance: 2Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3db): 10Hz-3KHz
Crossover (1-12dB/Oct)
- Variable High-Pass: 35Hz-250Hz
- Variable low-Pass: 35Hz-250Hz
Fuse Rating
- 2 x 25A (Inside)
Dimensions
- Length x Width x Height: 7.1”x4.7”x1.8” (180mm x 120mm x 46.5 mm)
FEATURES
- LED Power/Protect Light Indicator
- Selectable X-Over: High Pass/Flat/Low Pass
- 1-year Manufacturer's Warranty
- MFR #: XED6004D
